Industry Applications of Spiral Cutter Head Wood Thickness Planer
The main function of the woodworking thickness planer is to cut the surface of the wood once or multiple times, so that the opposite side of the wood (relative to the datum plane) has a certain smooth plane and the thickness required for the process design, which facilitates the processing of the next process. This thickness planer is widely used in fields such as woodworking and home decoration.
Specifications of Wood Thickness Planer
| Model | WJ-102 | WJ-104 | WJ-105 | WJ-106 |
|---|---|---|---|---|
| Max Planing Width | 200 | 400 | 500 | 600 |
| Minimum Workpiece Thickness | 10mm | 10mm | 10mm | 10mm |
| Max Planing Thickness | 100mm | 120mm | 150mm | 150mm |
| Feeding Speed | 13.5m/min | 13.5m/min | 13.5m/min | 13.5m/min |
| Minimum Working Length | 250mm | 250mm | 250mm | 250mm |
| Cutter Shaft Speed | 6500rpm | 6500rpm | 6500rpm | 6500rpm |
Features of Spiral Cutter Head Wood Thickness Planer
- The machines are all equipped with upgraded motors, which have good heat dissipation and high efficiency.
- It equipped with the emergency stop device it can help stop the machine immediately, in case of any fault occurs, to protect the workpiece being damaged.

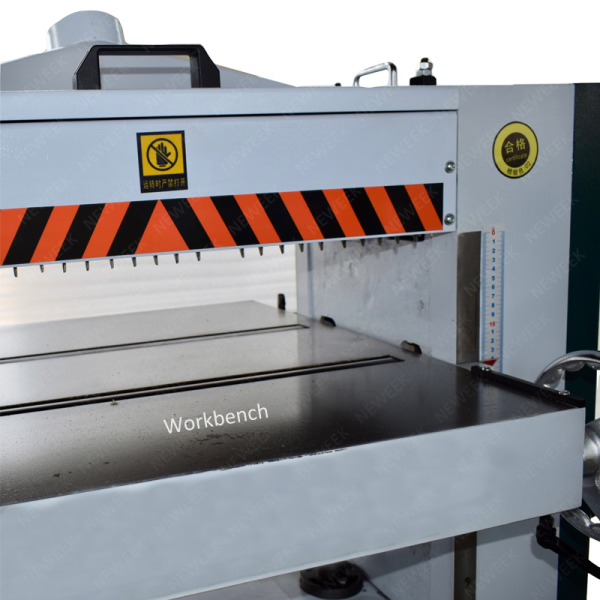

- The worktable is made of high strength technology with high strength and no deformation.

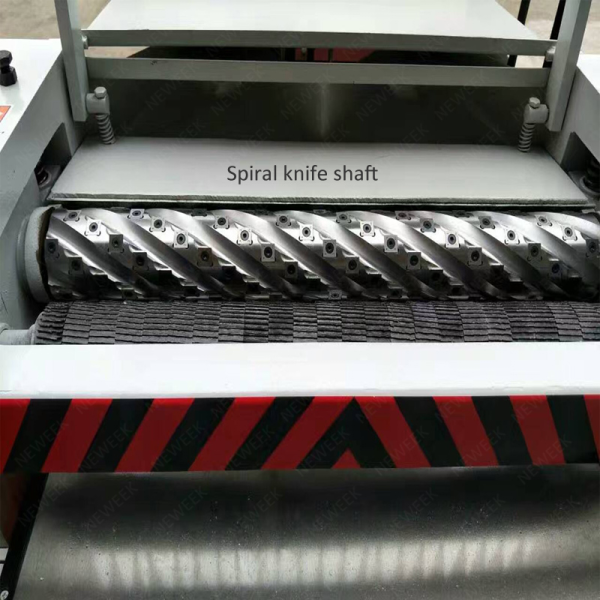

- High quality spiral cutter head stable and durable.
- Easy to operate, optimum finishing quality and efficient feed for any material and under any working conditions.

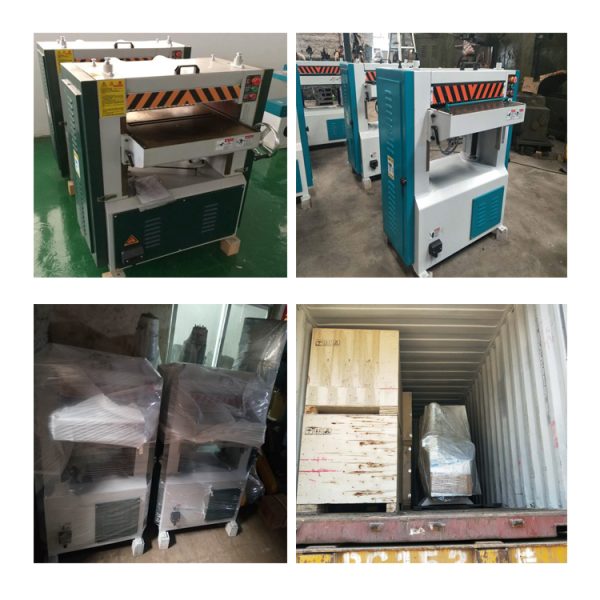

Samples of Wood Thickness Planer
